Vor- und Hauptsignale (SBB) - Link placement

    Hi,


    Yet another question from me *blöd* ..


    I thought I had SBB signal link placements right but now I am starting to wonder...


    Example: I have a 40 Km/h area up ahead, I have a hauptsignal at the start of that area which shows 40 (green/yellow). That's fine.


    Before that I have a hauptsignal with vorsignal. The haupt signal shows green (no speedlimit) which is correct but the vorsignal needs to show one green and one yellow (next signal 40 km/h). The problem is that the vorsignal shows 2 greens (no speedlimit).


    Where do I need to put the link of the vorsignal?


    1. Before all hauptsignal links
    2. Between the hauptsignal 0 and 1 link
    3. After the hauptsignal o and 1 links (and obviously before the next hauptsignal at the 40km/h area)


    I thought it was option 3 but it doesn't seem to work correctly...


    Probably difficult to answer with this info but maybe anybody can explain me the 'general' rules..


    Thanx!

    "It's not about perfection, it's about progress"

    In prinziple the Link 0 of the signals next to the Signal. Link 0, the first Link, without any number on it.
    Mainsignals should have the link 0 a little bit bevor the Signal. KI-Trains are stopping at Link 0, so it looks better.
    It need not to set the Link of the Vorsignal next to the Mainsignal, the Information will be running through the track.
    I think you should download the HV-Signals here. There is a Demoroute and a manual how to set Signals. There you can lern a lot. Because the basics are all the same.
    Main signals or combisignals have one or more numberd Links from 1 to n.
    This links behind a cutting after the swich at the track. here .
    If you want, set some Signals and give the Route to me (over a PM). I will have a look, So you get soon a feeedback to avoid mistakes.
    StS

    Keine Hilfe und Auskunft per PN, da meist von allgemeinem Interesse. Diese Fragen bitte im Forum stellen.

    Thanx StS,


    I tried some things and found that some of the vorsignal links were placed to far back. This normally doesn't happen but I have multiple locations where I use a separate haupt- and vorsignal on a portal, that's where the problems occur. I moved the links to option 2 in my original post and that seems to work.


    Thank you for offering to help checking out my route! I will fix what I can and then send you my route so you can check it for obvious faults.


    Thanx again for all your help *super*

    "It's not about perfection, it's about progress"

    The Link of the Vorsignal will read the Information of the next Mainsignal to show wich Situation is there. In direktion of driving the Link 0 of the Vorsignal have to be before Link 0 of the Link 0 of the Main signal. --> Option 1!
    In Option 2 I understand that you set the VS1 link 1 behind MS 1 Link 0 and befor MS 1 LInk 1. This is completele wrong. In this case you get the information of the MS 2 or MSVS 3 behind MS 1.


    VS 1 Link 0 ---1000m----MS 1 Link 0 ---\---MS 1 Link 1--- more than 1000m---VS 2 Link 0---1000m ---MS 2 Link 0---
    ...............................................\--MS 1 Link 2----1000m-----MSVS 3 Link 0-------------


    Link 0 always near to its Signal.


    -- Track
    ... Helping line for the scetch (no track)
    \ Switch


    VS Vorsignal
    MS Mainsignal
    MSVS Combisignal


    If the distant between Signals is to short to set Vorsignal between, then use Combisignals.
    I hope you understand now the princip of setting the links of following signals.
    By the way: do you use the Signals of the SBB route? I do not have this route.


    StS

    Keine Hilfe und Auskunft per PN, da meist von allgemeinem Interesse. Diese Fragen bitte im Forum stellen.

    Hi StS,


    I have SBB route 1 and are using it's signals on my route.. So no possibilities to send you the route then.. *ohman*
    Back to text, screenshots and pictures than :)


    Your explanation above is clear to me. I normally follow these rules and it's all OK. But I have the general situation that is shown in this video (real situation)


    http://youtu.be/7s6B7mR12bY


    I need a haupt- and vorsignal on the portal. There is no combisignal for that in the SBB route assets. So I need to put a separate 3Li1T and VR1T on the portal.


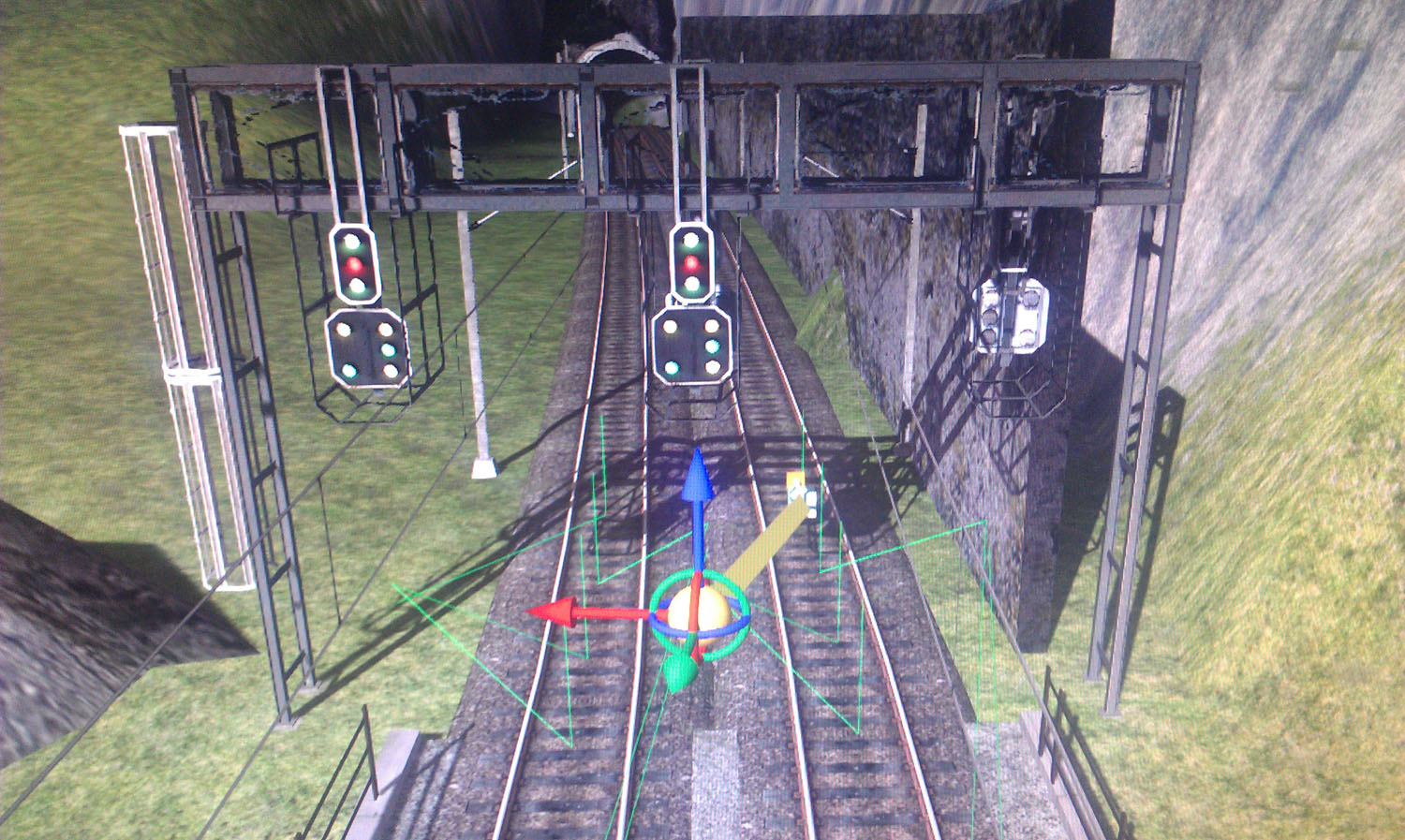

    Doing that works fine when I put the vorsignal link in front of the hauptsignal links (see picture), I changed that after your remarks on this subject.



    Now there is only a problem when the situation is as follows:

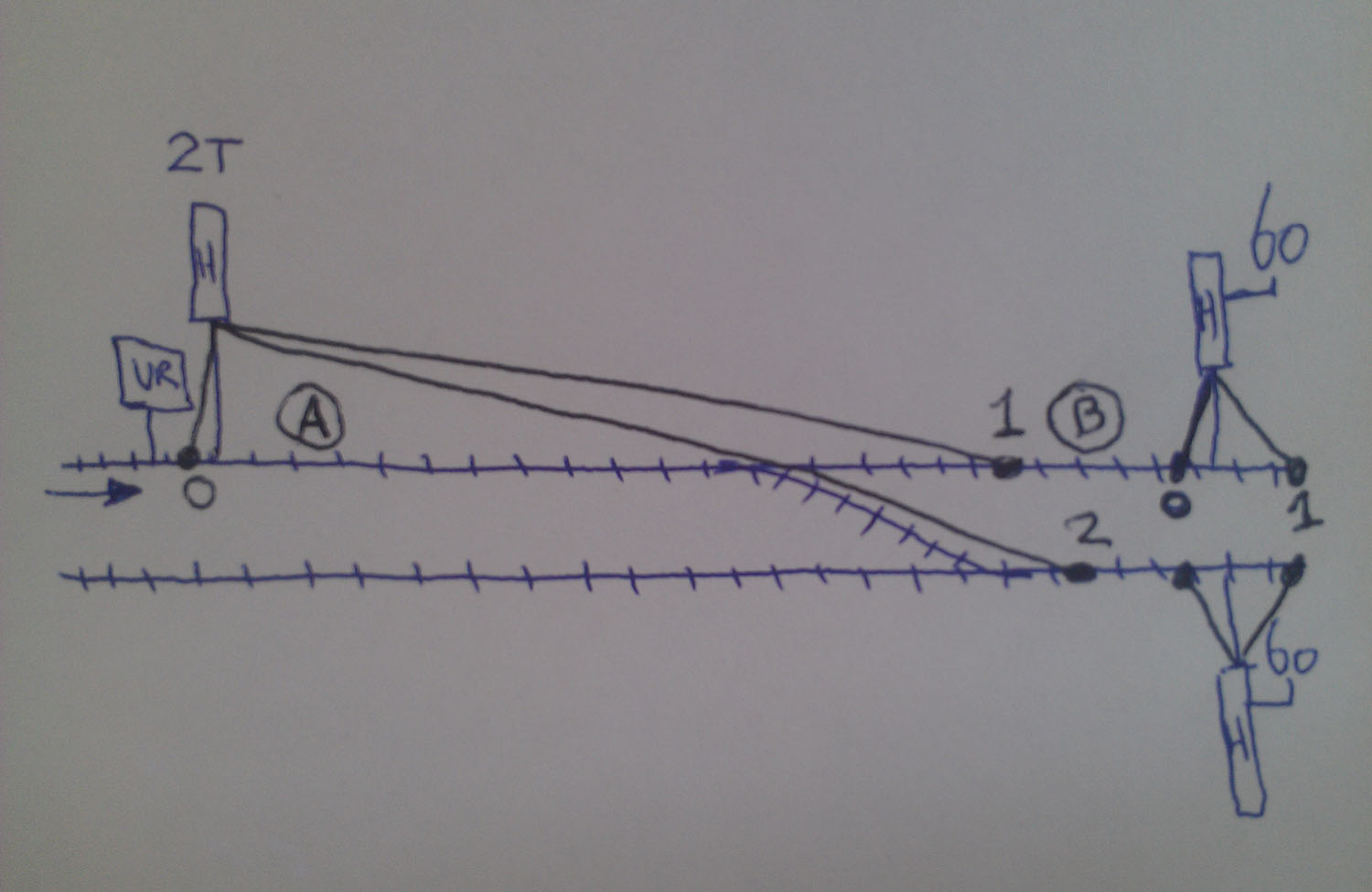

    The left 2T signal shows normal speed (straight) or 40 km/h (when diverging). The right HS's show 60km/h (2 green). Where do I put the vorsignal link? It needs to show that the next hauptsignal is 60km/h (2green1yellow).
